C-Stack

Monocrom-passive-diode-bar-stack

Conduction Cooled Laser Bar Stack

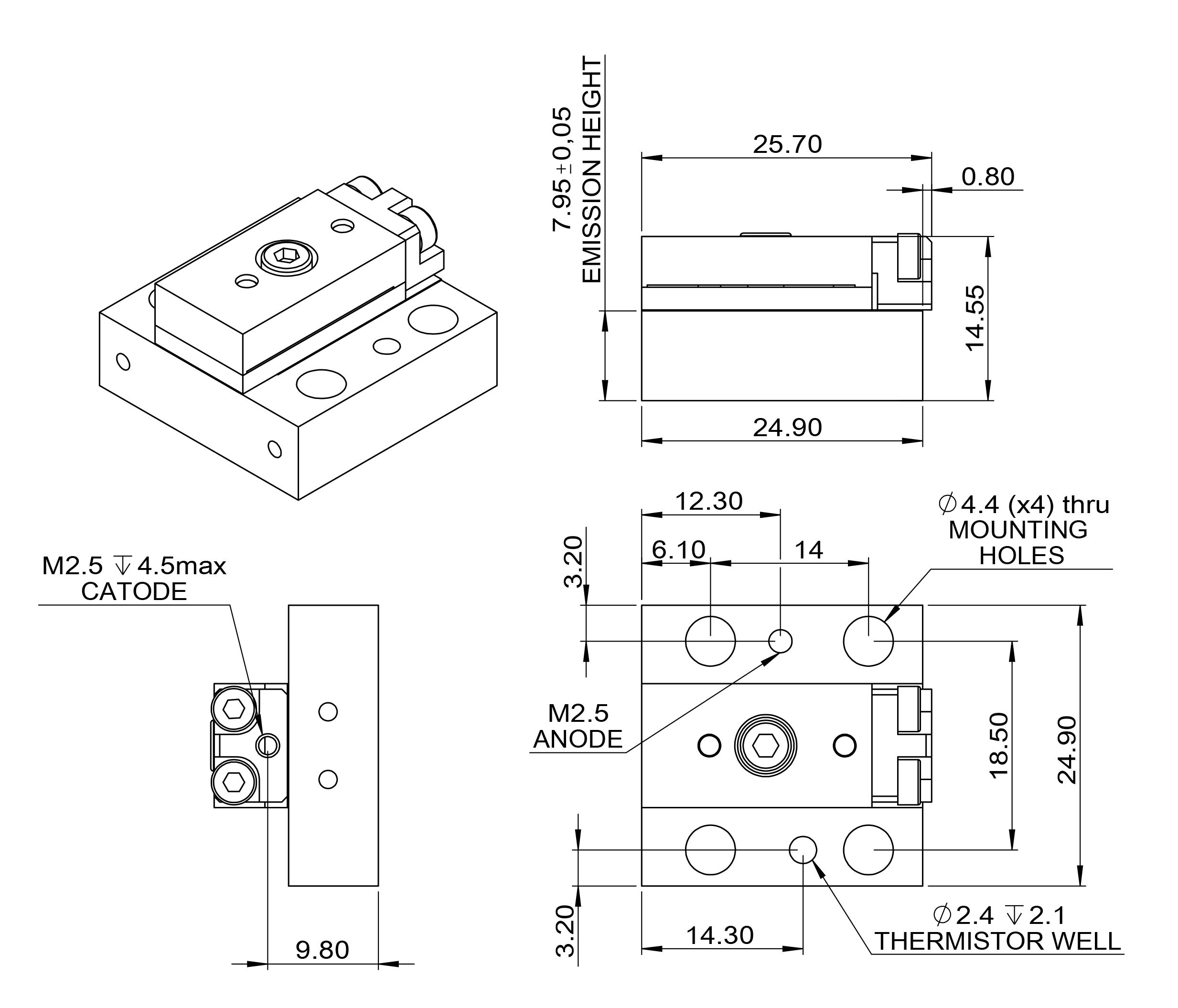

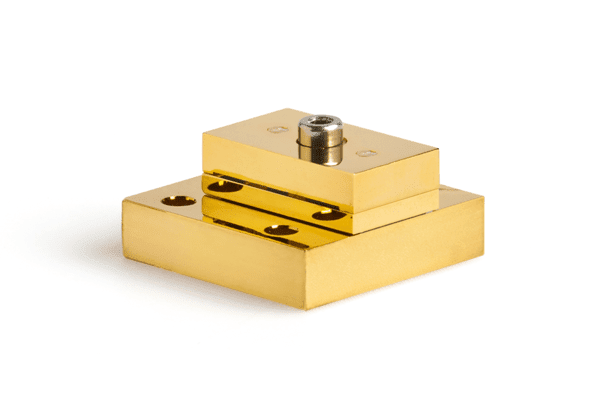

A conduction cooled diode laser stack with great heat dissipation and an un unprecedent low smile. A huge variety of laser bars is available in this package and the central wavelenght can be tuned to your needs.

C-Stack 808nm

C-Stack 880nm

C-Stack 915nm

C-Stack 940nm

C-Stack 976nm

C-Stack 1060nm

Diode Laser C-Stack / Technical specifications

Laser parameters 808 nm 880 nm 915 nm 940 nm 976 nm 1060 nm
Type conduction cooled conduction cooled conduction cooled conduction cooled conduction cooled conduction cooled
Wavelength(1) [nm] 780 – 830 870 – 890 910 – 920 930 – 950 960 – 980 1040 – 1080
Wavelength tolerance [nm] ±20 ±20 ±20 ±20 ±20 ±20
Spectral width [nm] 3 3 3 3 4 3
Wavelength shift [nm/K] 0.27 0.33 0.27 0.27 0.4 0.27
Output power(2,3) [W] CW – up to 100 / QCW – up to 500 CW – up to 100 / QCW – up to 500 CW – up to 200 / QCW – up to 200 CW – up to 120 / QCW – up to 300 CW – up to 150 / QCW – up to 400 CW – up to 100 / QCW – up to 250
Operating current [A] CW < 120 / QCW < 480 CW < 120 / QCW < 480 CW < 220 / QCW <220 CW < 120 / QCW <320 CW < 160 / QCW < 380 CW < 120 / QCW < 280
Efficiency coefficient [W/A] 1.2 1.2 1.2 1.2 1.1 1.2
Voltage @ connectors(4) [V] 2 – 30 2/laser bar 2 – 30 2 – 30 1.8/laser bar 2 – 30
Bar to bar pitch [mm] down to 1.5 down to 0.4 down to 1.5 down to 1.5 down to 0.4 down to 1.5
Optics (optional) FAC / SAC / BT FAC / SAC / BT FAC / SAC / BT FAC / SAC / BT FAC / SAC / BT FAC / SAC / BT
Bars per stack(5) 1 – 15 1 – 15 1 – 15 1 – 15 1 – 15 1 – 15
Smile [μm] < 0.3 < 0.3 < 0.3 < 0.3 < 0.3 < 0.3
  1. Other wavelengths on request.
  2. Expected output power. Can varies based on current and temperature.
  3. Specification are subjected to chips availability.
  4. Voltage from the power supply must be higher, as due to high current there will be a voltage drop in the cables.
  5. Pitch dependent
