A-Stack
Water-cooled laser diode stacks with real macro-channels that avoid the common issues with obstructions. The non-soldering technique used in the mounting of the laser bars, allows the use of electrodes with high thermal conductivity (near to 400 W/km). Furthermore both anode and cathode electrodes act as heat sinks and there is no thermal barrier between the laser bar and the electrodes. As a result, high cooling efficiency and large opertaion and storage temperature range are achieved.
A huge variety of laser bars is available in this package and the central wavelength can be tuned to your needs.
Technical Specifications / Diode Laser A-Stack
| Laser parameters | 808 nm | 880 nm | 915 nm | 940 nm | 976 nm | 1060 nm |
|---|---|---|---|---|---|---|
| Type | actively cooled stack | actively cooled stack | actively cooled stack | actively cooled stack | actively cooled stack | actively cooled stack |
| Wavelength(1) [nm] | 780 – 830 | 870-890 | 910 – 920 | 930 – 950 | 960 – 980 | 1040 – 1080 |
| Wavelength tolerance [nm] | ±20 | ±20 | ±20 | ±20 | ±20 | ±20 |
| Spectral width [nm] | 3 | 3 | 3 | 3 | 4 | 3 |
| Wavelength shift [nm/K] | 0.27 | 0.33 | 0.27 | 0.27 | 0.4 | 0.27 |
| Output power(2,3) [W] | CW – up to 100 / QCW – up to 500 | CW – up to 100 / QCW – up to 500 | CW – up to 200 / QCW – up to 200 | CW – up to 120 / QCW – up to 300 | CW – up to 150 / QCW – up to 400 | CW – up to 100 / QCW – up to 250 |
| Operating current [A] | CW < 120 / QCW < 480 | CW < 120 / QCW <480 | CW < 220 / QCW <220 | CW < 120 / QCW <320 | CW < 160 / QCW <380 | CW < 120 / QCW < 280 |
| Efficiency coefficient [W/A] | 1.2 | 1.2 | 1.2 | 1.2 | 1.1 | 1.2 |
| Voltage @ connectors(4) [V] | 2 – 30 | 2/laser bar | 2 – 30 | 2 – 30 | 1.8 /laser bar | 2 – 30 |
| Bar to bar pitch [mm] | down to 1.5 | down to 1.5 | down to 1.5 | down to 1.5 | down to 1.5 | down to 1.5 |
| Optics (optional) | FAC / SAC / BT | FAC / SAC / BT | FAC / SAC / BT | FAC / SAC / BT | FAC / SAC / BT | FAC / SAC / BT |
| Bars per stack(5) | 1 – 15 | 1 – 15 | 1 – 15 | 1 – 15 | 1 – 15 | 1 – 15 |
| Smile [μm] | < 0.3 | < 0.3 | < 0.3 | < 0.3 | < 0.3 | < 0.3 |
- Other wavelengths on request.
- Expected output power. Can varies based on current and temperature.
- Specification are subjected to chips availability.
- Voltage from the power supply must be higher, as due to high current there will be a voltage drop in the cables.
- Pitch dependent
This content cannot be seen on mobile view. Change to PC or tablet landscape view
Level of integration
Possible levels of integration for this product are marked in red
LI1
DIRECT DIODE
LI2
DIRECT DIODE
MICRO-OPTICS

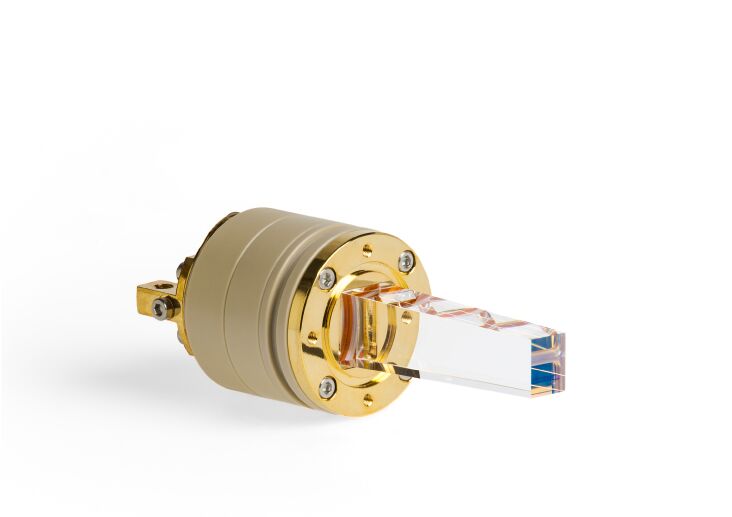

LI3
SUB-ASSEMBLIES
MICRO-OPTICS
HOUSING
PRISM
CRISTALS
LI4
LASER SYSTEMS
MICRO-OPTICS
HOUSING
PRISM
CRISTALS
ELECTRONIC COMPONENTS
FIBER OUTPUT
We provide our laser solutions with different level of integration, from direct beam to complex systems
