Direct Diode Lasers


Direct diode lasers in a broad range of power levels and emission wavelengths designed for the most demanding industrial and medical applications that deliver up to 8 kW of power in continuous wave (CW).

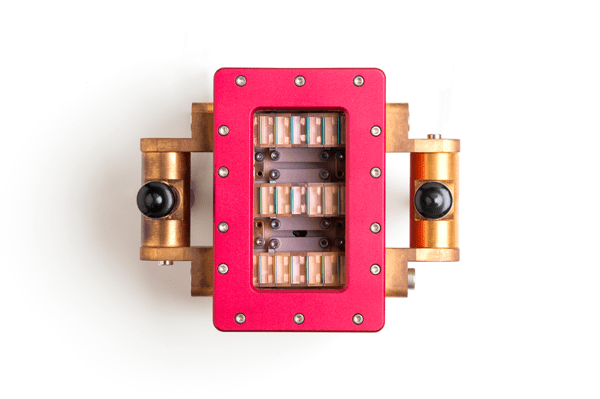

Our diode laser stacks are mounted with Monocrom Solder-free laser bar Clamping™ technology, cooled efficiently, conductively or with real water macro channels for a low maintenance cost.

Our direct diode laser sources have matched the very demanding parameters of industrial applications such as heat-assisted roll-forming of ultra-high strength steel and bending of high strength steel in an industrial servo press for continuous die processing.

🔴 Technical specifications | download Datasheet. click!

wdt_ID Output Power (W) Wavelength (nm) Operation Mode (CW/QCW) Cooling Collimation Comments Datasheet
1 1.000 808 – 1060 Pulsed to CW Active Customized High power diode laser, polarization on request Monocrom @FLEX
2 105 2100 Pulsed to CW Active Customized Expected life-time: 20.000 hours. Wide storage temerature: - 40º C to + 85º C. No "SMILE" effect Monocrom @FLEX
3 120 760 - 2200 Pulsed to CW Passive Customized Low thermal resistances. Wide storage temperature 40º C to + 85º C. Smile [ m] < 0.3 Monocrom @MINI
4 125 1320 Pulsed to CW Active Customized Expected life-time: 20.000 hours. Wide storage temerature: - 40º C to + 85º C. No "SMILE" effect Monocrom @FLEX
5 125 1470 Pulsed to CW Active Customized Expected life-time: 20.000 hours. Wide storage temerature: - 40º C to + 85º C. No "SMILE" effect Monocrom @FLEX
6 1.700 1060 Pulsed Passive Customized Low thermal resistances. Wide storage temperature 40º C to + 85º C. Smile [ m] < 0.3 Monocrom @PULS
7 200 2100 Pulsed Passive Customized Low thermal resistances. Wide storage temperature 40º C to + 85º C. Smile [ m] < 0.3 Monocrom @PULS
8 200 2300 Pulsed Passive Customized Low thermal resistances. Wide storage temperature 40º C to + 85º C. Smile [ m] < 0.3 Monocrom @PULS
9 0 808 QCW Passive Customized 33 Laser Bars, low thermal resistances, wide storage temperature - 40º C to + 85º C, No “smile” effect Monocrom @ARDEF 33
10 0 808 QCW Passive Customized 55 Laser bars, low thermal resistances, wide storage temperature - 40º C to + 85º C, No “smile” effect Monocrom @ARDEF 55
Operation Mode (CW/QCW)
SKU: Direct Diode Lasers Categories: , , Tags: ,

🔴 Possible levels of integration for this product are marked in red

***Choose between different architectures and tune the central wavelength to your needs
Level-of-Integration-Direct Diode_Monocrom

We provide our laser solutions with different level of integration, from direct beam to complex systems

🔴 Laser Bar Clamping™ Technology. Discover more >>
Clamping Technology
